Load
Material, required payload and quantity

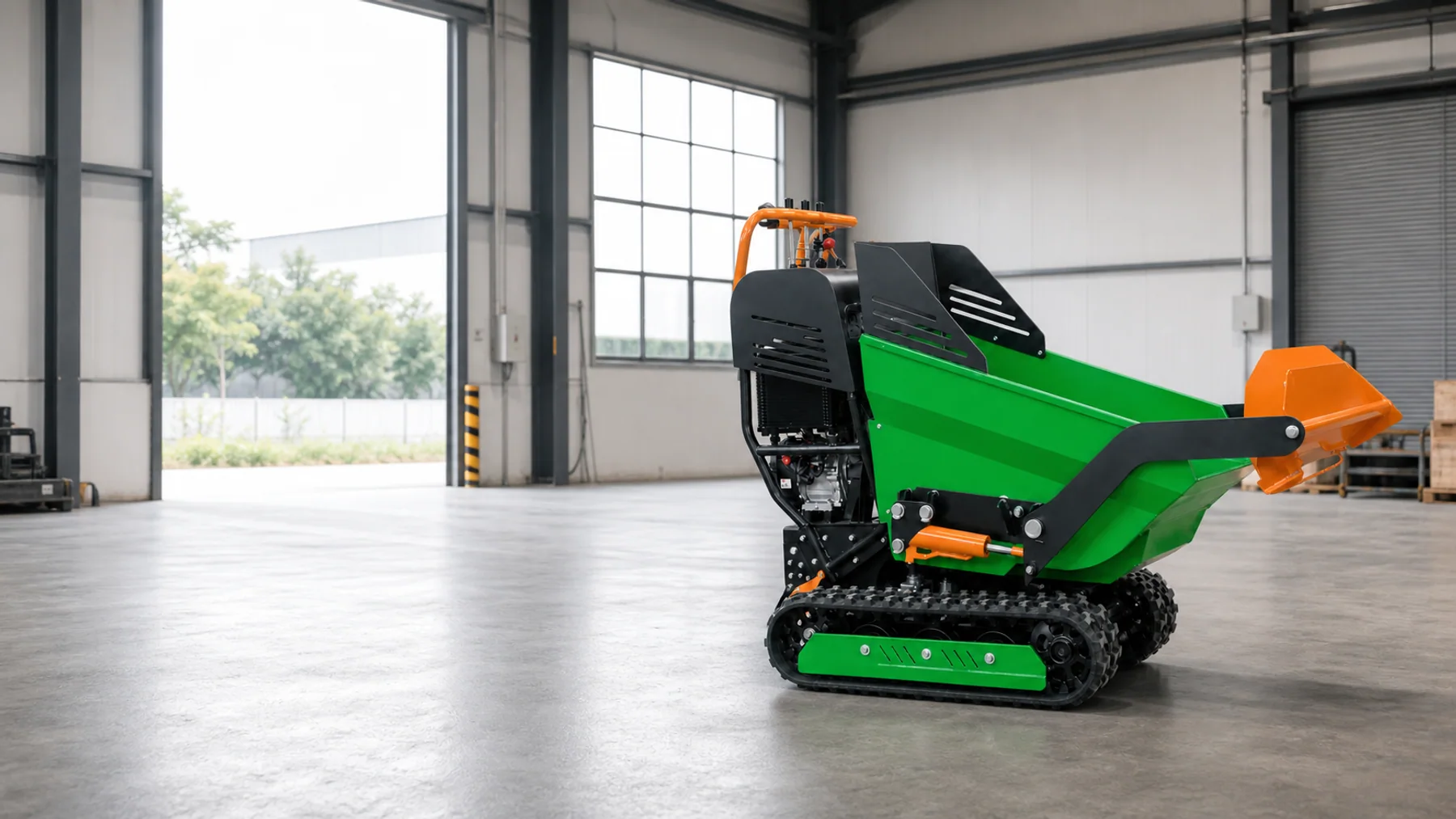

Mini Crawler Dumpers for Defined Loads, Ground Conditions and Access
ROCKVANTA supplies compact tracked dumpers for material movement on drawing-led and project-defined equipment orders. Start with the load, travel path, ground condition, discharge point and destination requirements.
Access
Ground, incline, width and turning space
Dumping
Direction, height, reach and receiving point
Power
Engine or power reference and controls
Destination
Site requirements, records and packing
Application fit
Start With the Load, Ground and Access
A crawler transporter is useful when material must move through narrow access or over loose and uneven ground where wheeled equipment may not be suitable.
When comparing a mini crawler dumper manufacturer, send a clear operating brief. State what will be carried, where the machine will travel, how it must unload and what limits the overall size.
Material and load
State the material, expected load and working pattern.
Ground and incline
Describe the surface, slope length, cross-slope and obstructions.
Access envelope
Provide access width, turning space, gates, lifts and indoor clearances.
Discharge point
Define the receiving point, approach and required dumping geometry.
Choose Mini Skid Steers for loading, handling attachments or powered tool work. Choose Mini Crawler Dumpers for point-to-point material transport and tipping.
Review Mini Skid SteersDumper Models for Your Site
ELY2.0 and EH3.0 are available model references for farm, household, small-mine and worksite enquiries. Describe the load, access width, ground conditions and unloading point so we can confirm the appropriate configuration.
Configuration to confirm
- Model references
- ELY2.0 and EH3.0
- Travel and load
- Payload, track layout, ground clearance, turning and loaded slope conditions
- Dumping arrangement
- Body dimensions, unloading height and hydraulic requirements
- Power and destination
- Engine or drive configuration, fuel or battery requirements and destination market
The ELT500FD specifications below describe a separate brochure model; they are not specifications for ELY2.0 or EH3.0.

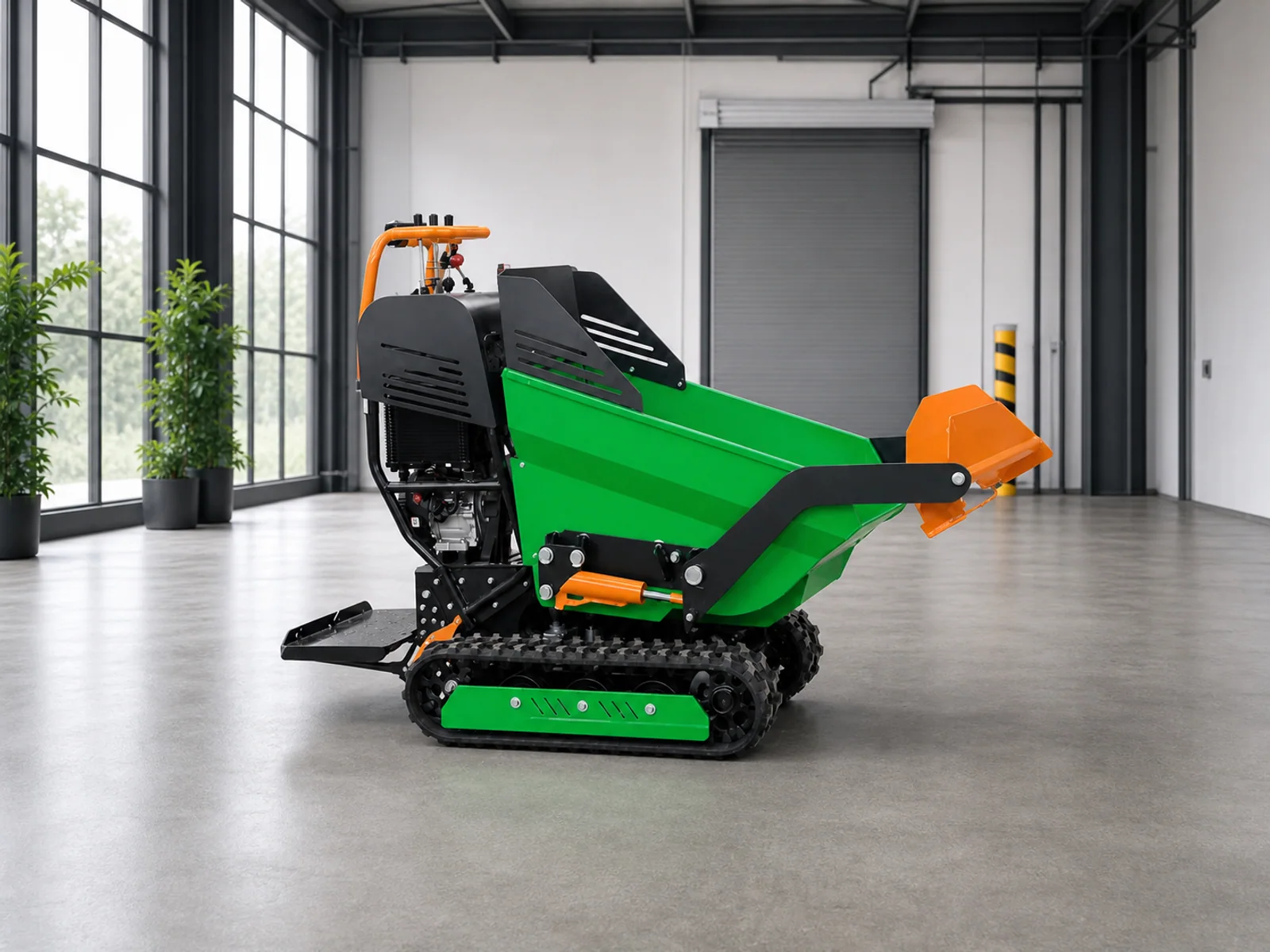

Reference configuration
Use the Reference Configuration to Define the RFQ
The supplied product brochure identifies ELT500FD as one available reference for this product family. These values help start a technical comparison; the quoted configuration, destination requirements and included records must still be confirmed for the order.
ELT500FD500 kg
Maximum payload in the supplied brochure reference.
- Maximum payload
- 500 kg
- Machine weight
- 450 kg
- Dumping arrangement
- Forward tipping / front discharge
- Engine reference
- KOHLER 5.5
- Displacement
- 1.1 L
- Maximum travel speed
- 5 km/h
- Maximum gradeability
- 30°
- Maximum unloading height
- 700 mm
- Maximum unloading distance
- 260 mm
- Maximum machine length
- 2500 mm
- Maximum machine height
- 1200 mm
Values reproduced from the supplied brochure. Confirm every value against the quoted configuration before ordering.

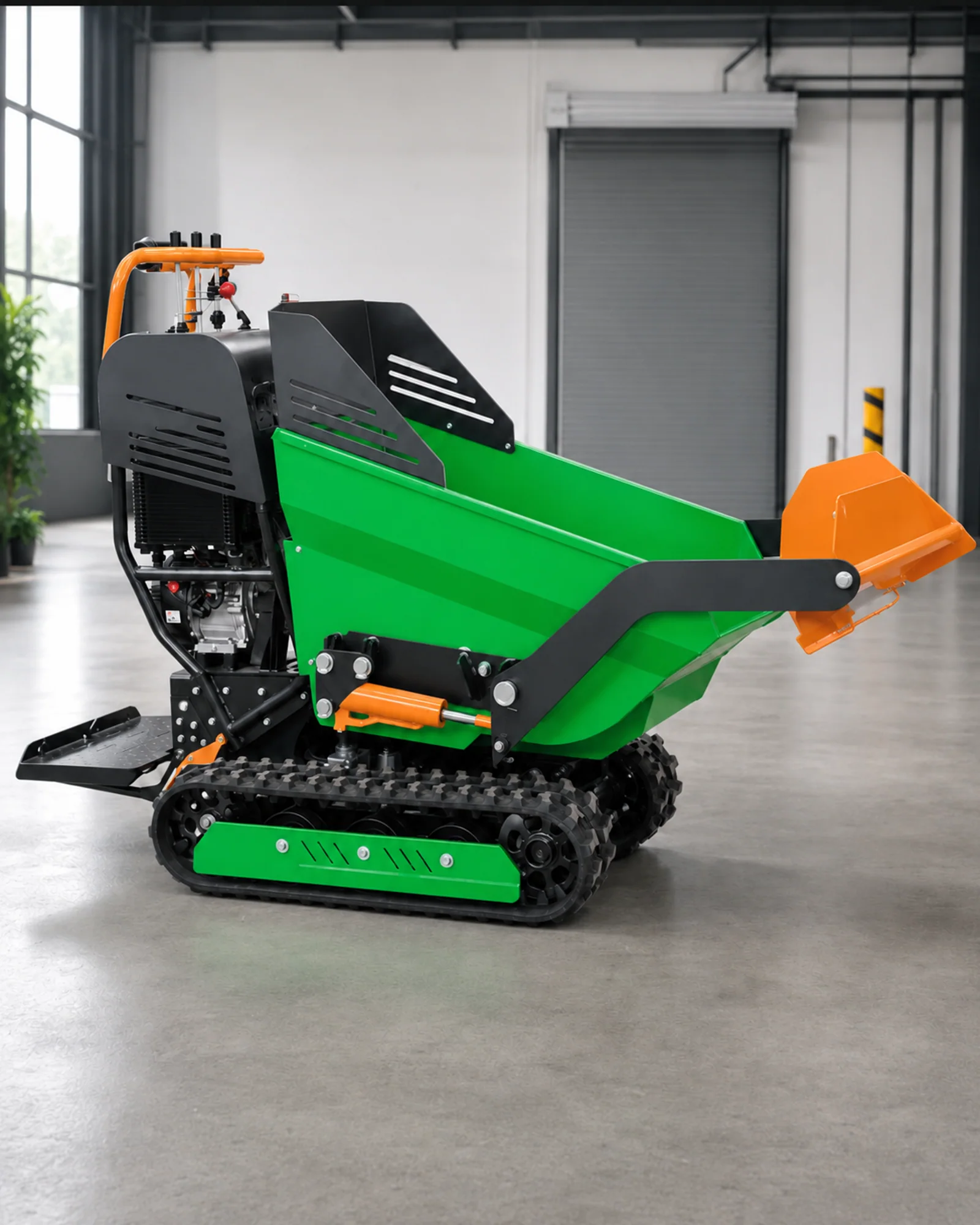

Review Dumping, Travel and Site Access Together
The load has to reach the receiving point without creating a conflict between access, stability and discharge geometry.
Confirm the discharge point

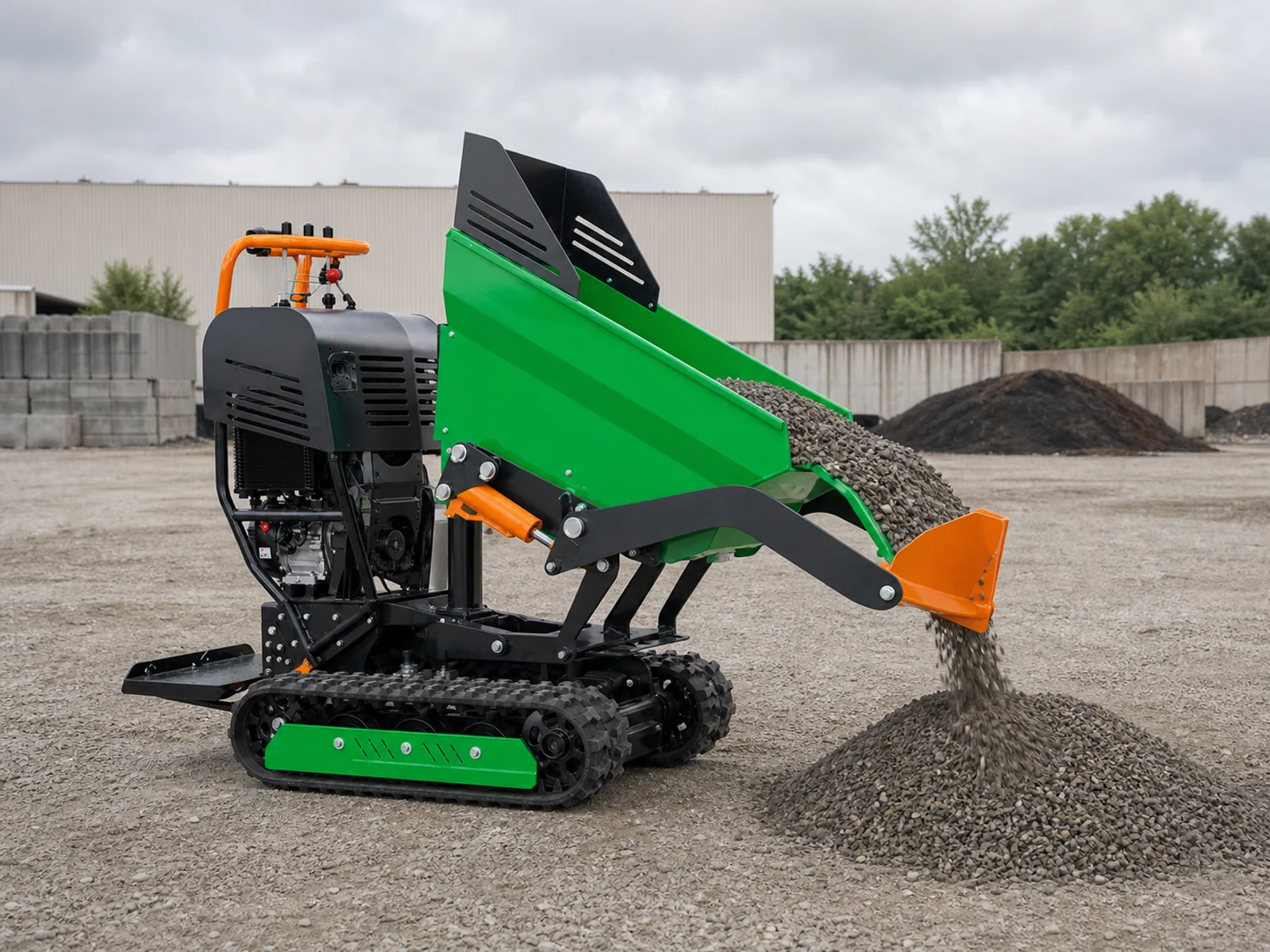

Front tipping is only useful when the machine can approach the receiving point safely and the discharge height and reach suit the site. Send the required discharge direction, edge condition, receiving container or pile arrangement and any access restriction.

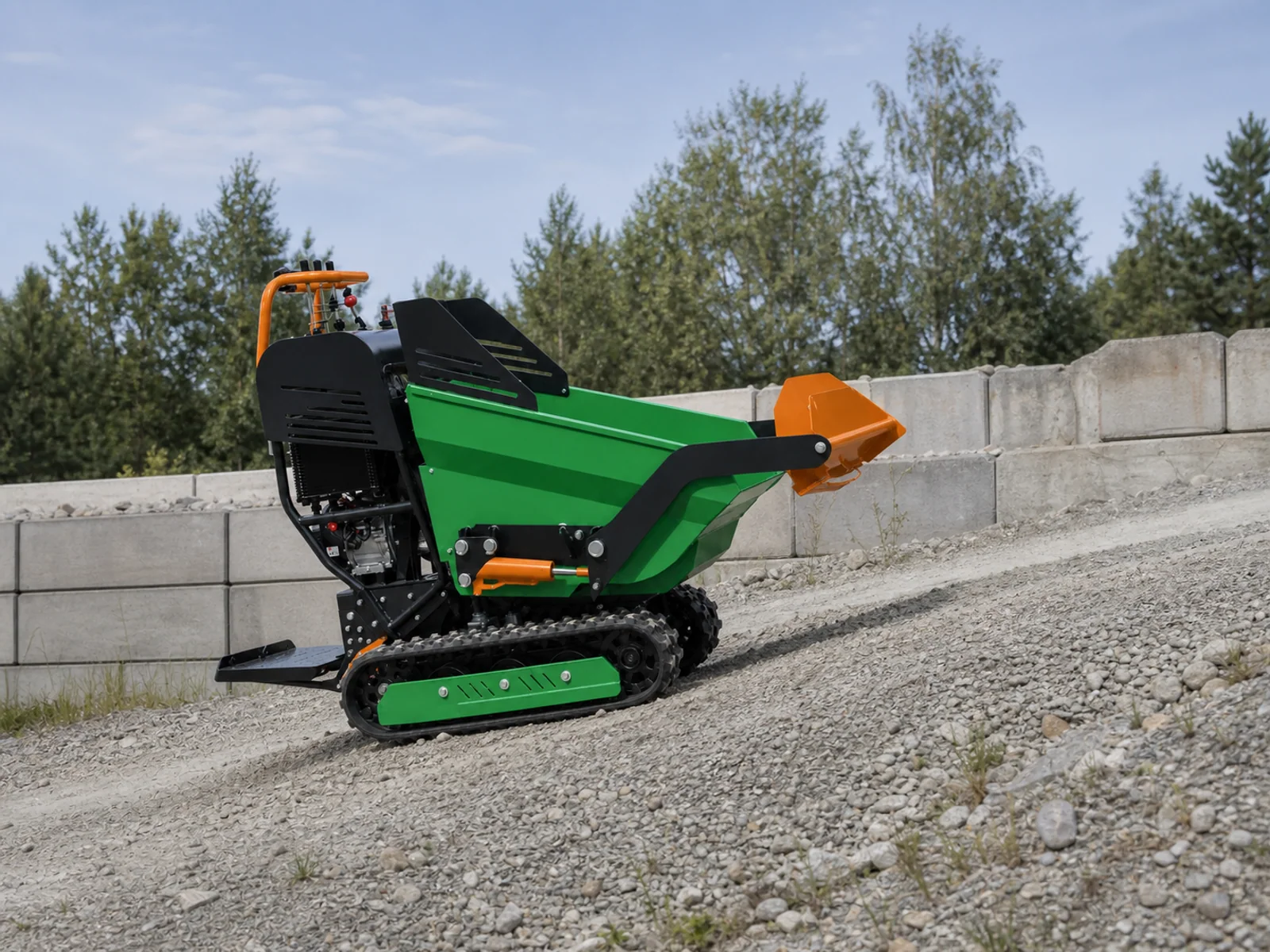

Review the ground and access
Review track contact and the published grade reference together with the surface condition, incline length, cross-slope, turning space, obstructions and loaded travel direction.

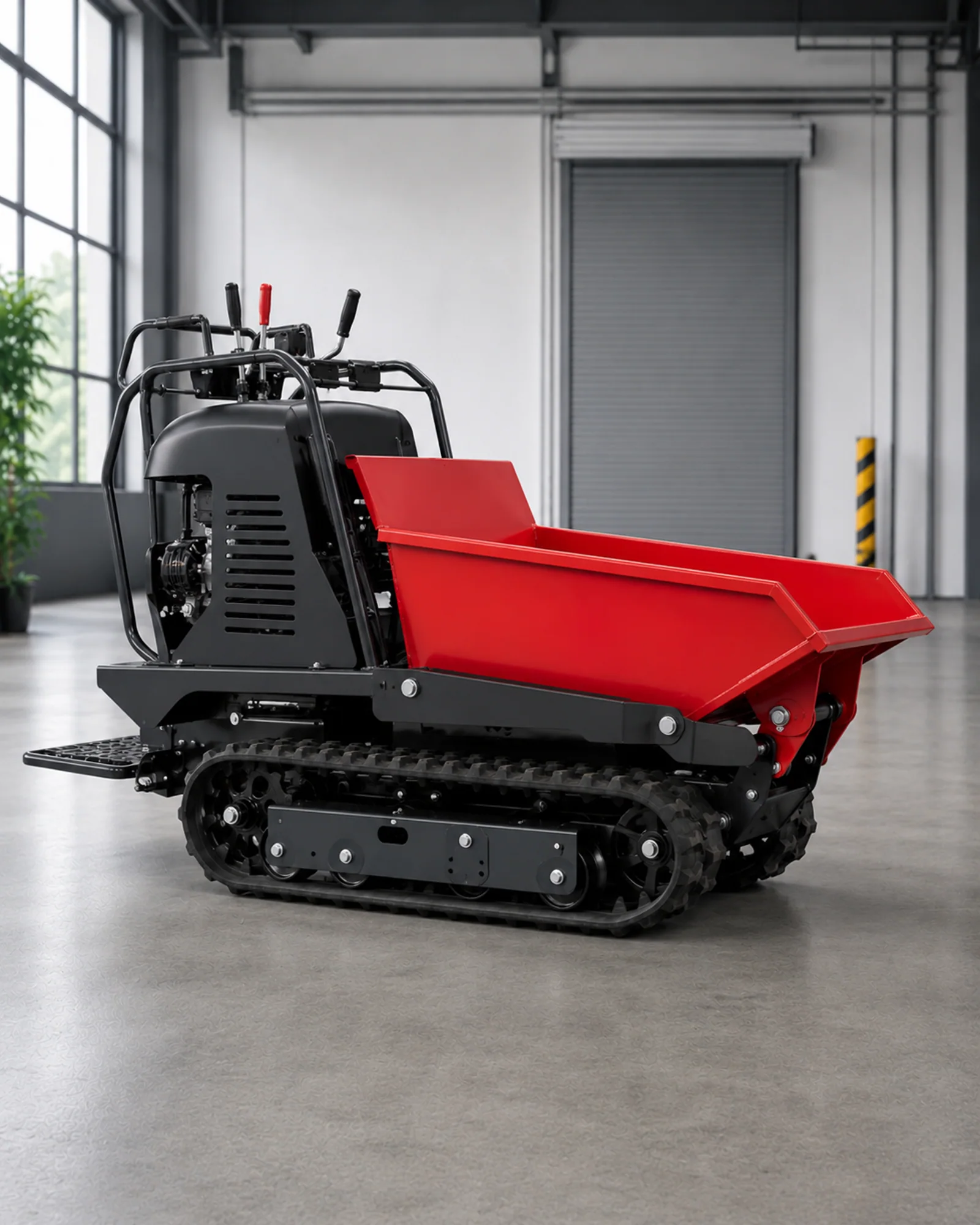

Configuration review

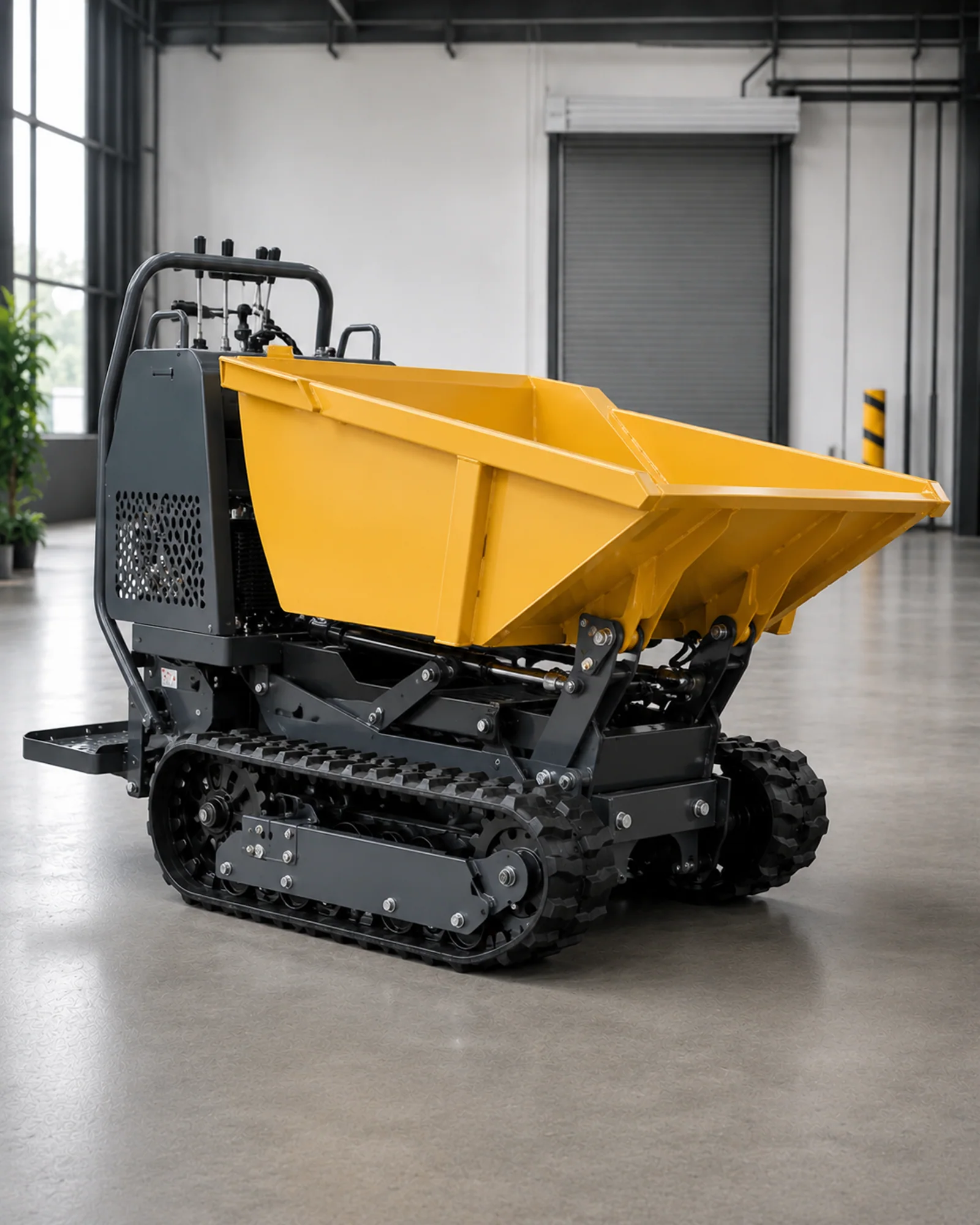

Use the Photograph as a Starting Point
Confirm the working interfaces, controls, protection and included equipment that define the supplied configuration.
- Operator position and controls
- Engine or power reference
- Body style and discharge direction
- Guarding, lifting and service access
- Overall size and access limitations
- Destination-specific requirements
Project controls

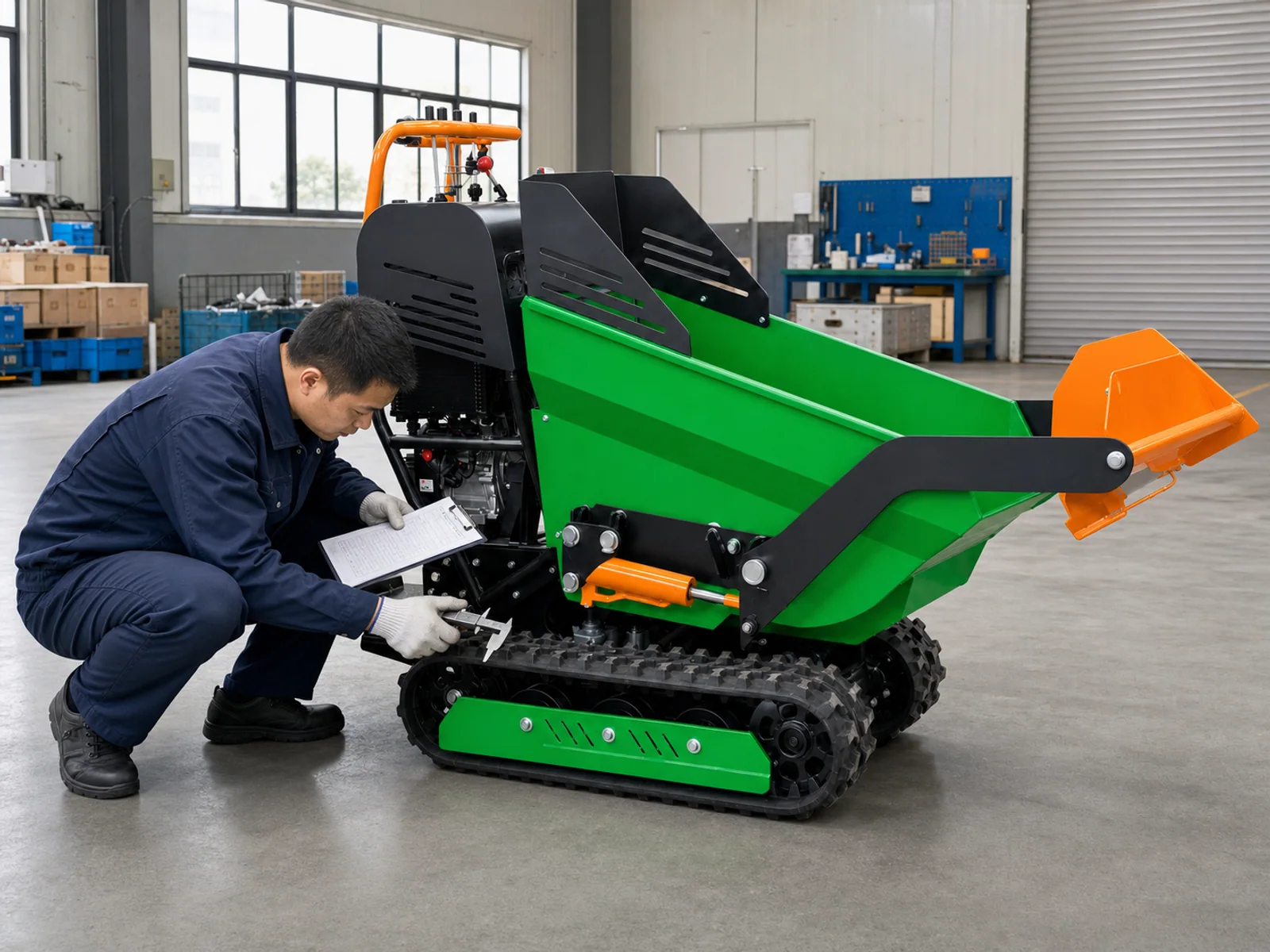

Agree the Checks Before Shipment
The quotation records the checks and documents required for the confirmed machine configuration.
Dimensions and interfaces
Confirm the agreed machine envelope, body, controls and project interfaces.
Running gear and function
Review track, running gear, tipping and applicable mechanical or hydraulic functions.
Records and packing
Confirm requested records, identification, inspection hold points and export packing.
Third-party inspection
For standard products or custom production orders, third-party inspection can be provided when required. The buyer may arrange an inspector, nominate an inspection body, or ask ROCKVANTA to coordinate with a suitable provider. Inspection, reinspection and report fees, timing and scope are confirmed and buyer-paid before the order or shipment.

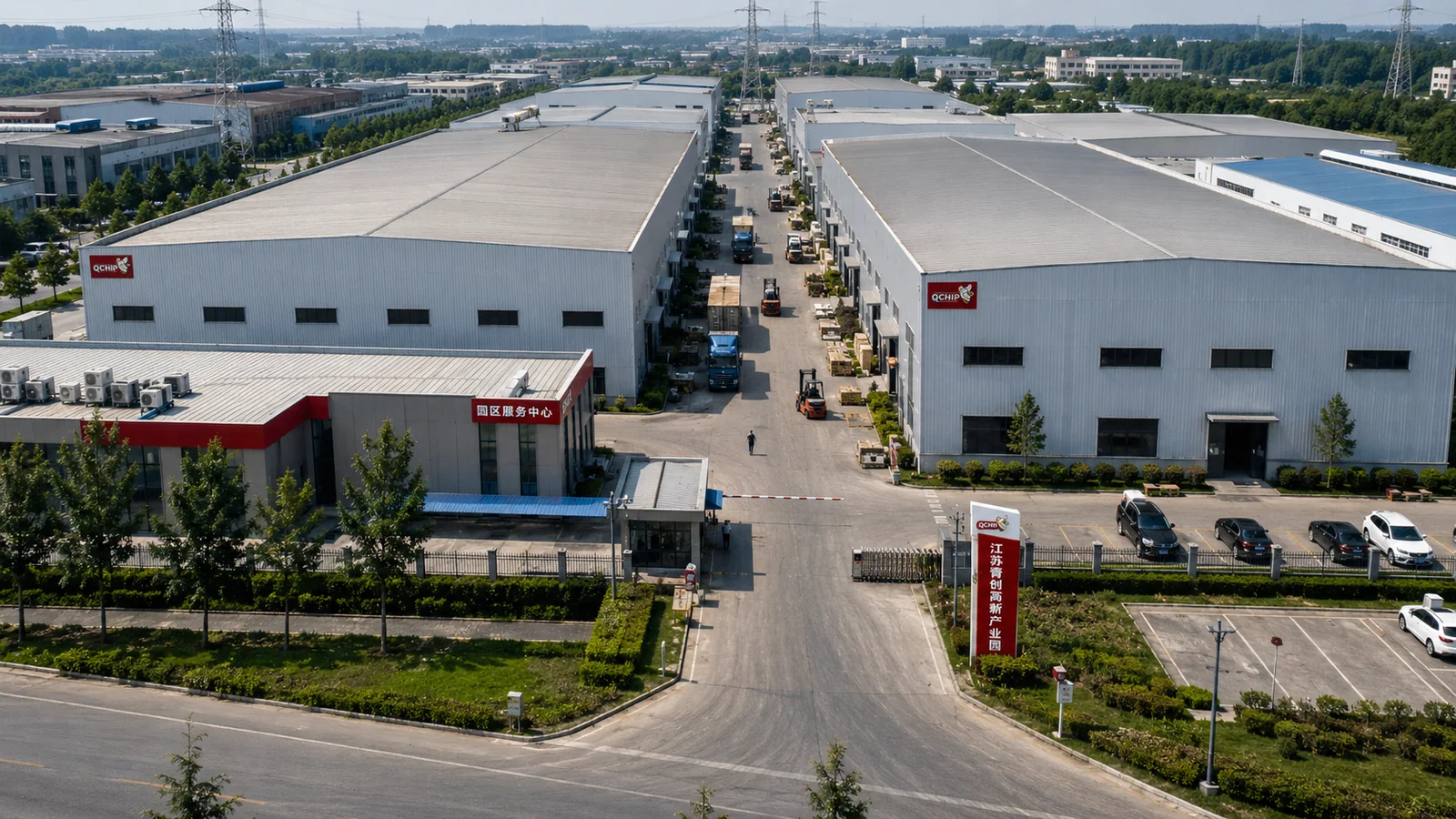

Assign Dumper Production to the Relevant Base

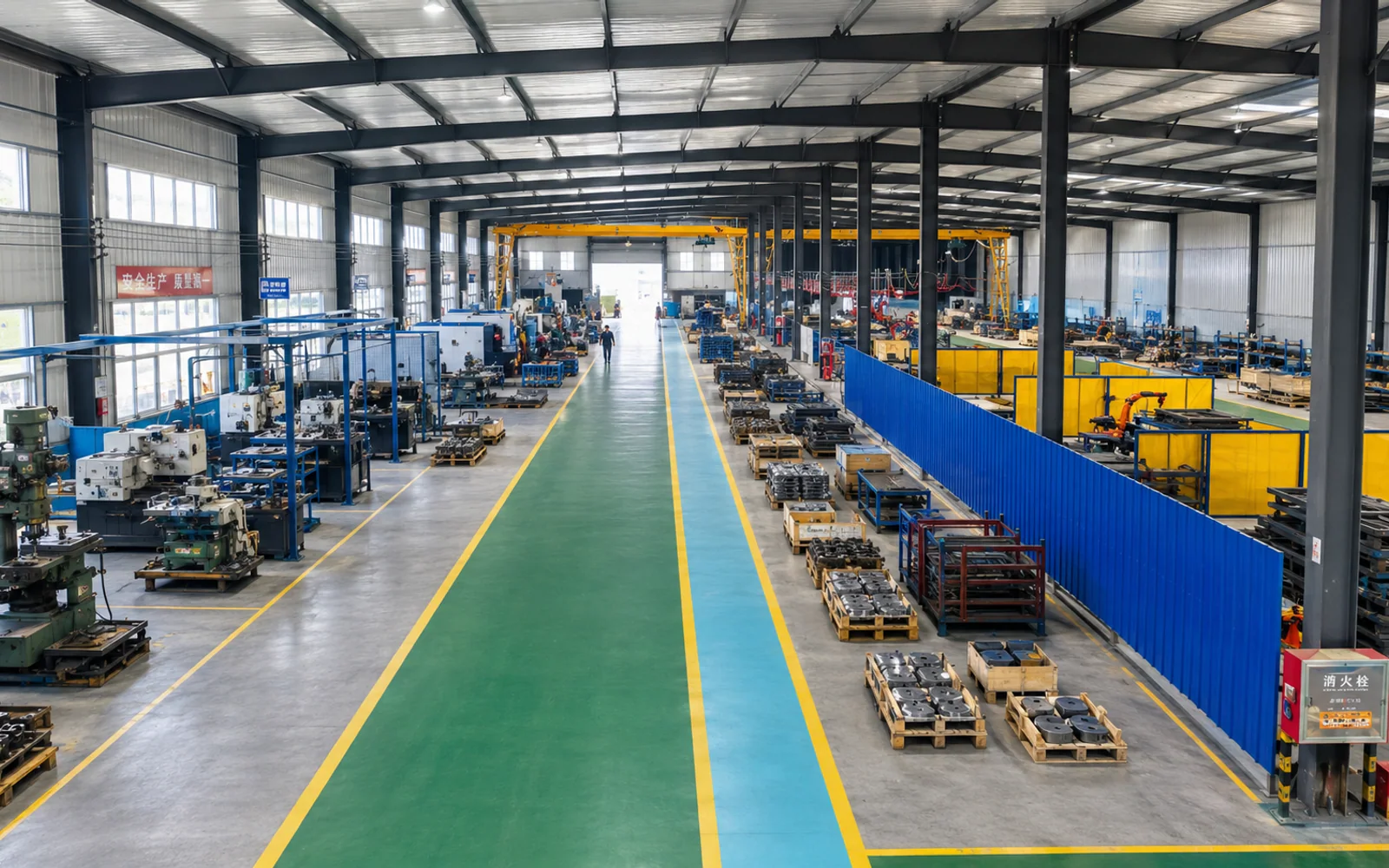

ROCKVANTA owns and operates five specialized manufacturing bases. Our team reviews the machine and project inputs, assigns the relevant base and coordinates production and supporting work.
Production scope, available capacity and timing are confirmed for the specific RFQ.
How We Select a Manufacturing BaseReview the load, ground and access
Assign the relevant base
Coordinate production and supporting work
Confirm inspection and packing requirements
Send the Load, Travel Route and Discharge Requirements
A useful enquiry shows what the machine must carry, where it must travel and how the load must be discharged.
Buying guide: load, access and tipping →
- Required payload and material
- Travel path, ground and incline
- Discharge direction, height and reach
- Operator and control preference
- Power or engine reference
- Overall size or access limits
- Quantity and project stage
- Destination and applicable requirements
- Inspection, records and export packing
- Drawing, photograph, sample or reference machine
