Polyurethane Screen Panels for Defined Apertures and Deck Interfaces

ROCKVANTA supplies drawing- and sample-defined polyurethane screen panels and vibrating screen media for project requirements. Send the aperture, panel dimensions, deck interface, material handled and quantity so the product definition and acceptance scope can be reviewed before quotation.

Send a Screen Media Enquiry See What to Define

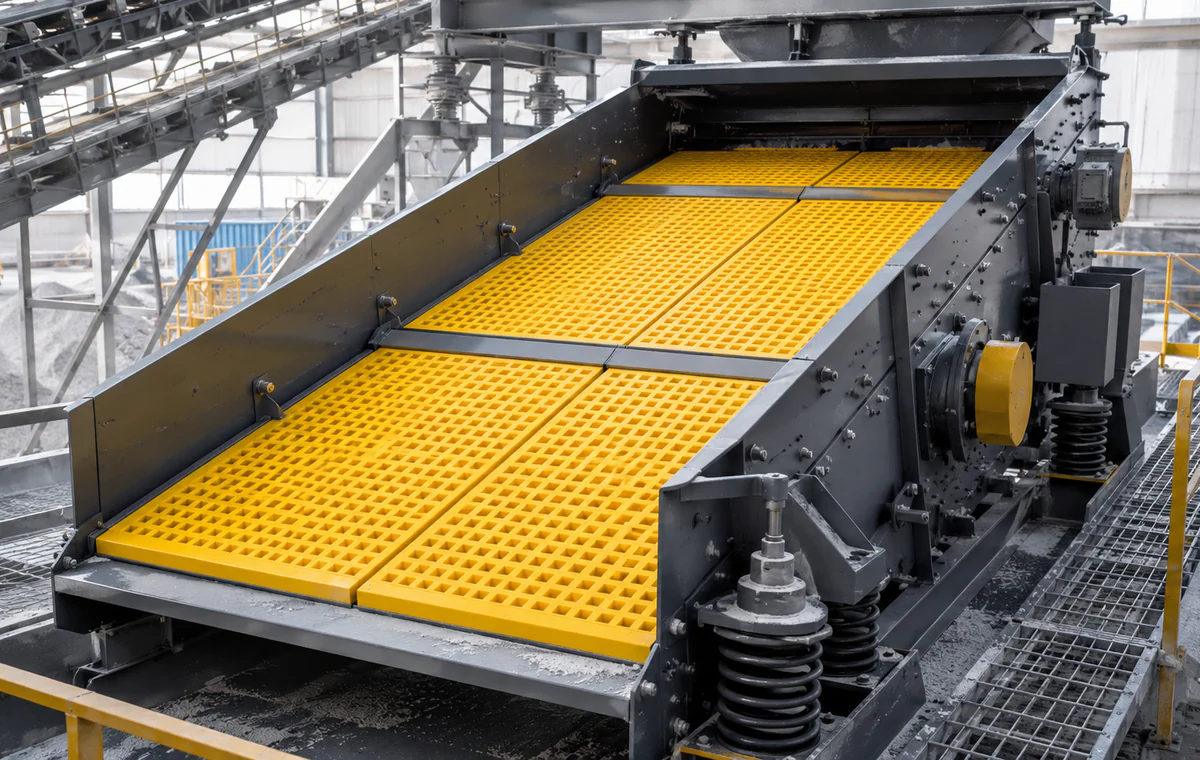

Polyurethane screen panels installed on a vibrating screen deck

Screen duty

Material handled, target separation and operating condition

Aperture

Opening shape, nominal size and layout

Panel

Overall dimensions, thickness and edge profile

Interface

Deck position, fixing method and adjoining panels

Start With the Panel, Opening and Deck Interface

Send the screening duty, aperture layout, panel geometry and deck interface. ROCKVANTA uses these inputs to define the PU screen panel specification.

Polyurethane Screen Panels

For modular panels, edge-defined sections and replacement panels made to the approved drawing, specification or sample. Send the complete panel outline and the features that locate or retain it on the deck.

Close view of polyurethane screen panel apertures and edge details

Aperture and Screening Surface

Define the opening shape, nominal size, orientation and active screening area. If more than one panel layout is used on the deck, mark the location of each type.

Fixing, Interface and Replacement Sets

Show the rail, clamp, pin, rebate, edge or other interface that connects the panel to the supporting structure. For replacement work, identify which panels form one set and how the existing arrangement is defined.

Panel formulation, hardness, aperture tolerance, open area and performance targets are confirmed only for the specific enquiry.

Wear-Resistant Steel Screen Media

Our steel screen-media production primarily supports our screening machines. Send the machine model, deck layout and target separation so we can confirm the panel geometry and attachment details.

Steel screen configuration

Media: Wear-resistant steel screen panels and mesh
Geometry: Panel dimensions, thickness, aperture size and shape
Installation: Fixing points, rails, hooks or bolted interfaces to the deck drawing
Duty: Feed size, target separation, moisture and wet or dry screening conditions

See screening-machine models

Define the Screening Duty Before Selecting the Panel Type

Record the material, impact, abrasion, moisture, temperature and fastening conditions at the deck position where the panel will work.

Material handled
Identify the bulk material and any condition that affects the screening surface.
Target separation
State the target cut or product size and any specified opening requirement.
Feed condition
Describe relevant moisture, fines, impact, loading or contamination.
Deck position
Mark the deck, zone and panel location within the screening arrangement.
Operating context
Provide the screen model or deck reference, where available, together with maintenance and access constraints.

Chinese engineer reviewing a polyurethane screen panel against a deck drawing

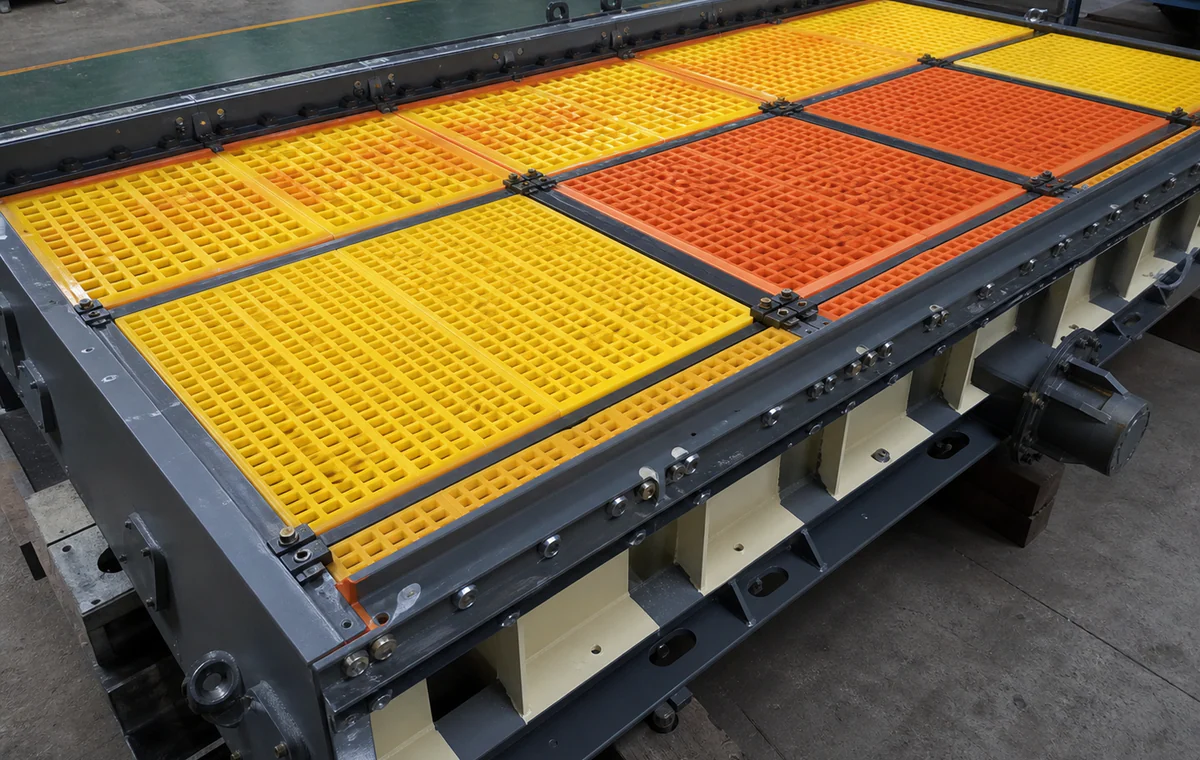

Keep the Aperture Layout and Deck Interface on the Same Drawing

Define the opening together with the overall dimensions, edge profile, support points, fixing features and adjoining panels.

For a new or replacement set, show the panel sequence and mark every transition, blanking, impact or special section. ROCKVANTA uses the supplied drawing, sample and deck information to select the panel construction and fixing system.

Plan Production From the Approved Panel Definition

Production and inspection requirements are planned from the approved panel drawing, sample and project information.

Technical review
Resolve aperture, panel geometry, edge and fixing features, deck interfaces and open points.
Production-process review
Confirm the applicable tooling, forming, machining, finishing or assembly steps for the quoted panel.
Set and project coordination
Keep panel positions, quantities, identification and packing tied to the approved arrangement.
Inspection and records
Connect dimensional checks, material records and requested documents to the quoted scope where applicable.

No single material recipe, process sequence, fixing method or inspection package applies to every screen-media project.

Chinese quality inspector measuring a polyurethane screen panel aperture

Agree the Checks That Matter to the Deck and Panel

Inspection is planned against the approved drawing, sample, specification and purchase requirements. State which dimensions, openings, interfaces, records and hold points form part of acceptance.

Panel geometry

Overall dimensions, edge profile, thickness and critical locating features.

Aperture definition

Opening shape, nominal size, orientation and layout where specified.

Interface and set

Fixing features, adjoining panels, panel position and replacement-set identification.

Documentation

Inspection reports, material documents or other project records where applicable.

Third-party inspection

If required, the buyer may arrange an inspector, nominate an inspection body or ask ROCKVANTA to coordinate with a suitable provider. Inspection timing, scope and cost must be agreed before the order or shipment. Inspection, reinspection and report fees are buyer-paid.

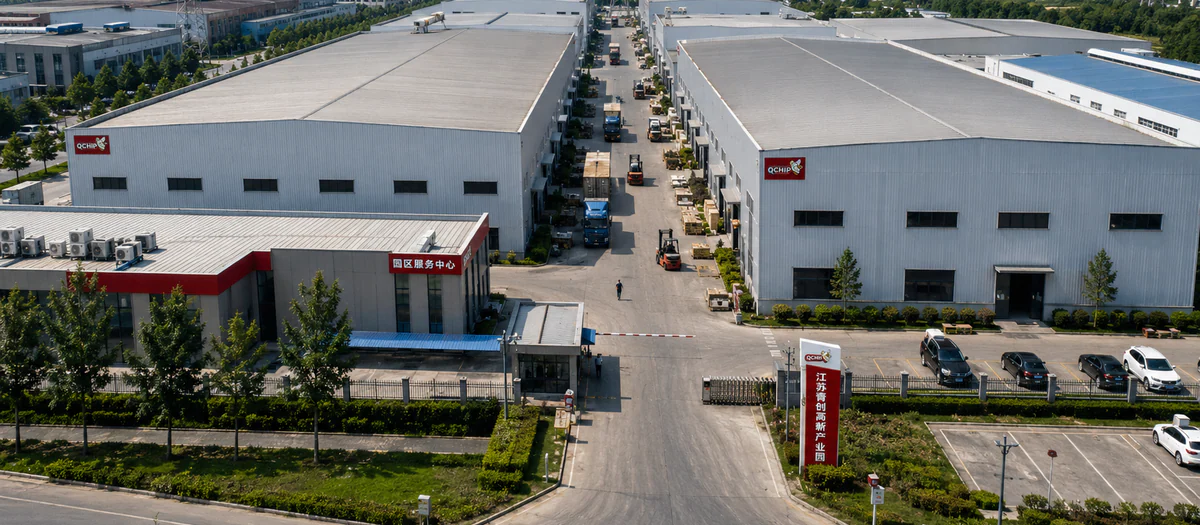

Assign Screen-Panel Production to the Relevant Base

ROCKVANTA owns and operates five specialized manufacturing bases. Our team reviews the screen duty, panel definition, production and inspection requirements, assigns the relevant base and coordinates any supporting work.

Production scope, available capacity and timing are confirmed for the specific RFQ.
