Conveyor Idlers 101: Carrying, Return and Impact Sets
A conveyor idler supports the belt as it moves. On a bulk-material conveyor, check whether it sits along the carrying run, at a loading point or on the return run.
For a replacement order, two questions come first: where does the idler sit, and are you buying individual rollers or a complete set? Start with a photo that shows the installation, and say which parts you intend to keep.
Carrying, return and impact idlers

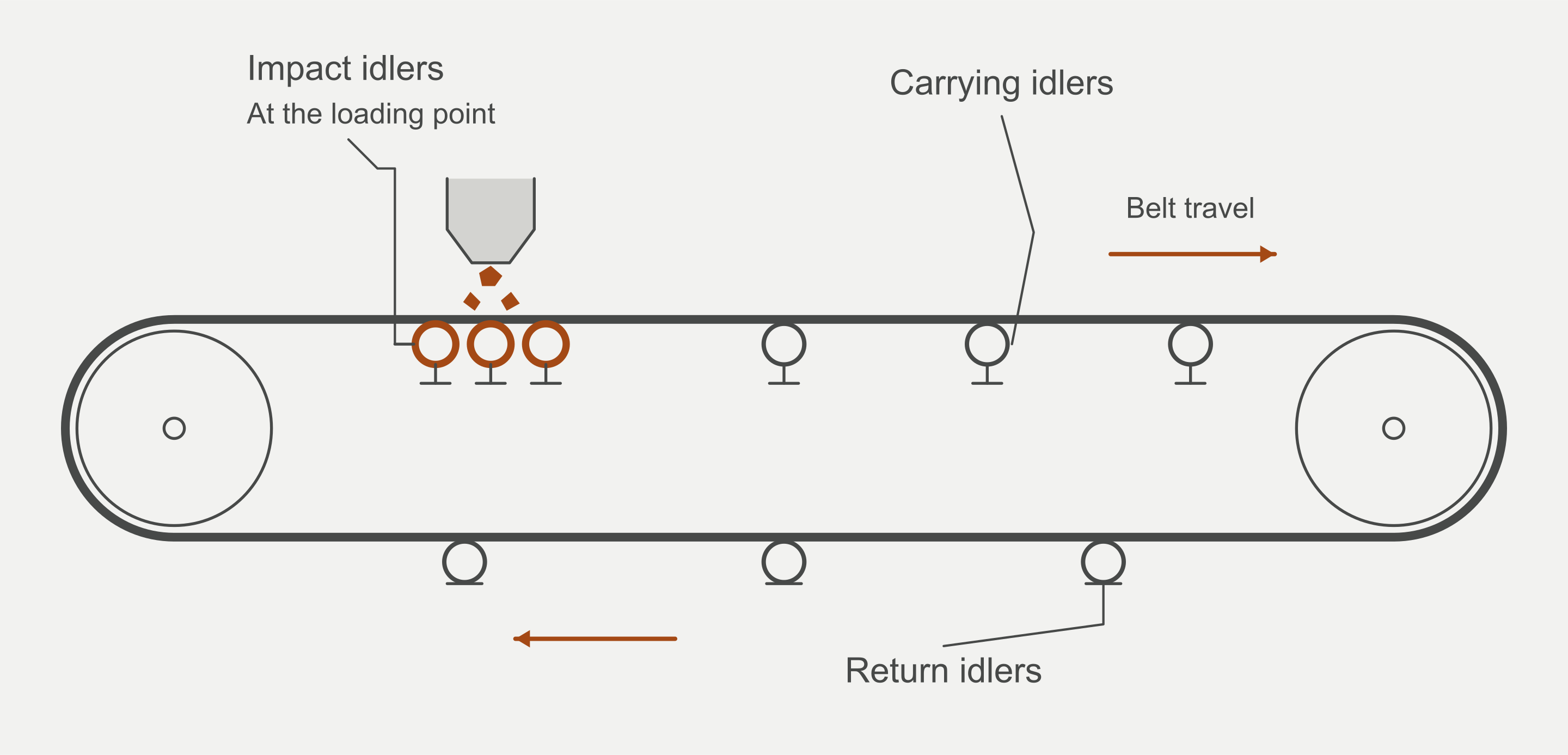

Impact idlers sit beneath the loading point on the carrying side.
Open diagram| Name | Where it works | What to show in an enquiry |
|---|---|---|
| Carrying idler | Supports the loaded belt, in a flat or troughed arrangement | The roller arrangement, belt width and mounting details |
| Return idler | Supports the belt along its return path | The existing return arrangement and its supports |
| Impact idler | Helps absorb loading shock on the carrying side, where material falls onto the belt | The loading position, material and existing impact arrangement |
On a flat carrying arrangement, the belt runs across a horizontal roller. A common troughing arrangement has a horizontal centre roller and an inclined wing roller on each side. The raised sides help form the belt into a trough. Check the actual roller count and angle on your conveyor; the three-roller example below does not define every set.
At a loading point, you may see impact rollers covered with closely spaced rubber rings to cushion the falling material. Photograph both the roller surface and its position under the chute. A ringed surface alone does not identify the duty: some return rollers also use discs to deal with material carryback. The installation tells the supplier which arrangement to review.

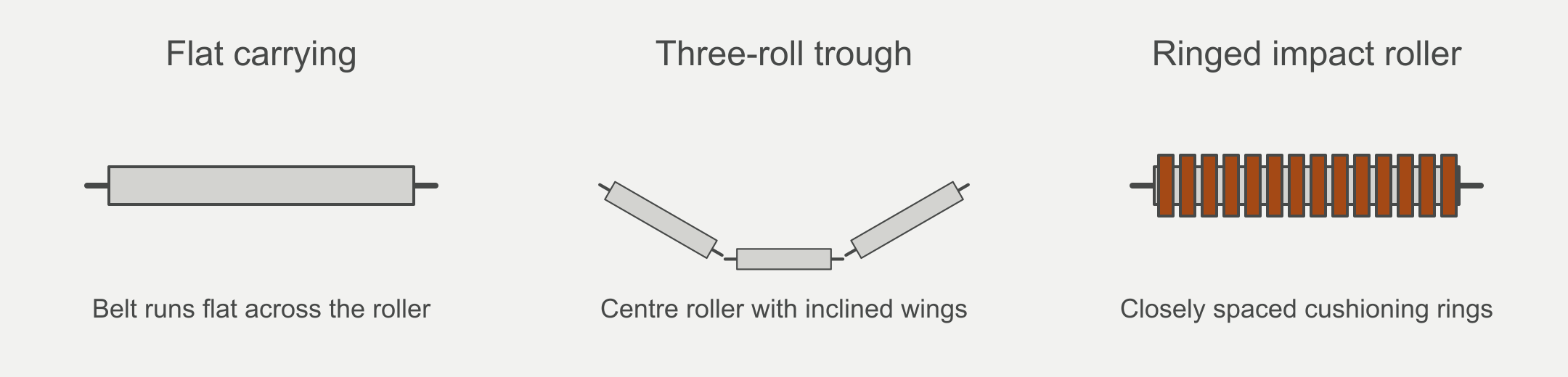

Typical forms to help identify the arrangement. Check the installation as well as the roller surface.
Open diagramOne roller or a complete set?

This example contains one centre roller, two wing rollers and one frame. The support positions match in both frame views.
Open diagramSuppliers use “roller” and “idler” in different ways. In this guide, a roller means the individual unit with its shell, shaft, bearings and seals. The frame supports the rollers in their specified arrangement. “Idler set” refers to the assembly, but the quotation still needs to say what is included.

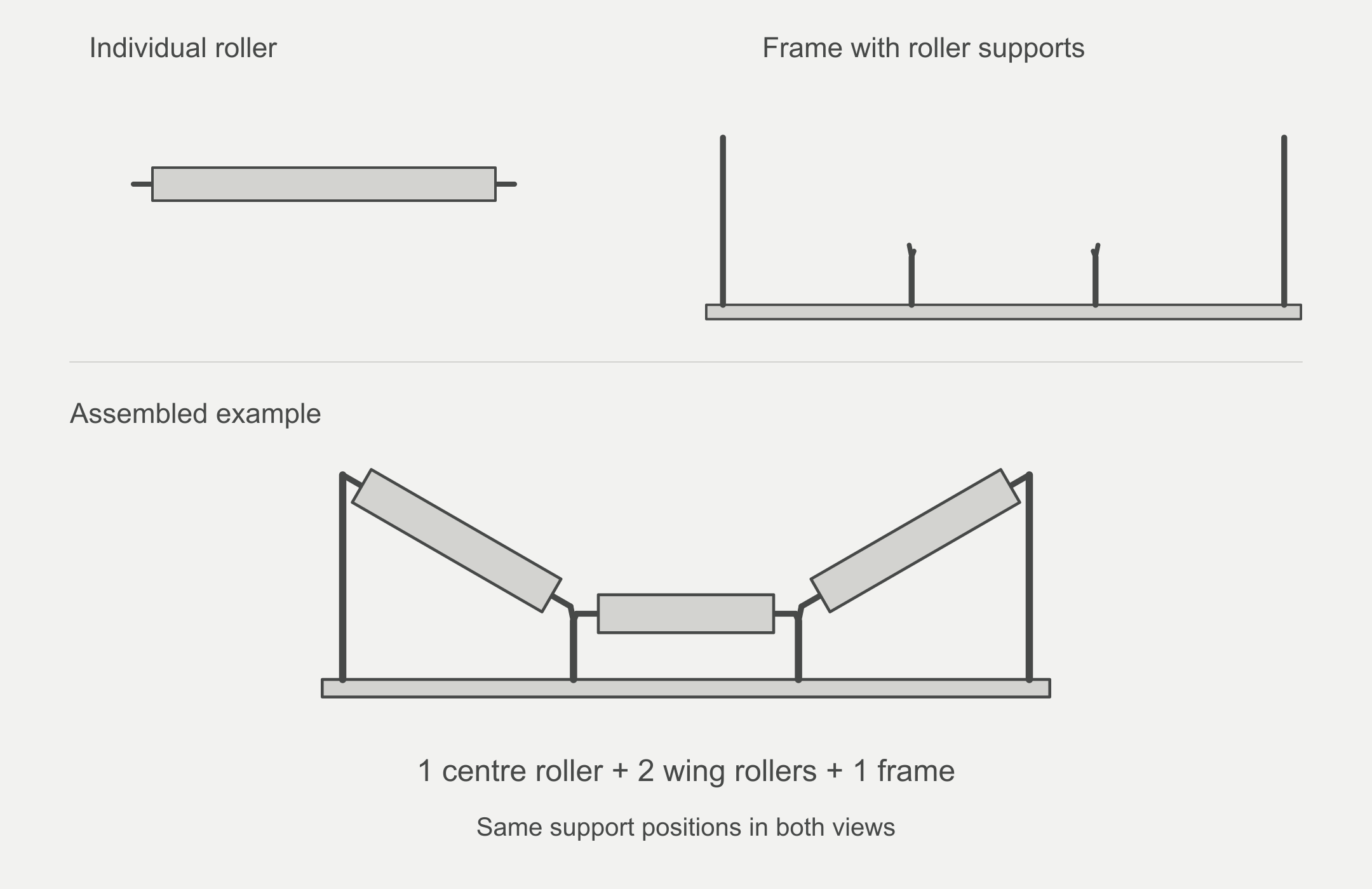

The example shown here has one centre roller, two wing rollers and one frame. The empty frame and assembled view use the same supports. Centre and wing rollers occupy different positions; check their drawings before treating them as interchangeable spares.
For a single replacement set, a supply list could look like this. These quantities and exclusions belong to this example only.
| Item | Example quantity | Supply scope |
|---|---|---|
| Centre roller | 1 | Included; identify the centre-roller drawing |
| Wing rollers | 2 | Included; identify the wing-roller drawing |
| Frame with roller supports | 1 | Included; match the roller arrangement and support seats |
| Conveyor mounting brackets | To confirm | Confirm whether the existing brackets will be reused |
| Mounting bolts and nuts | 0 supplied | Excluded from this example; buyer to confirm the required fasteners |
This makes a price “per set” easier to compare with a rollers-only offer. If you are keeping the frame, say so and send the shaft-end and support details. For a replacement frame, include its drawing or measurements too. The conveyor frames and structures page covers that part of the enquiry.
What belt width leaves out

Label the two endpoints of each dimension. Shaft-support positions and frame mounting-hole centres are separate measurements.
Open diagramSuppose an enquiry says, “We need carrying idlers for this belt width.” That gives the supplier a starting point, but leaves several fitting dimensions unknown. Two arrangements for the same belt width can use different roller lengths, shaft ends or mounting centres.
For an existing conveyor, check these details against the drawing or mark them on a sketch:
| Detail | What needs to be clear |
|---|---|
| Roller diameter | The specified shell diameter; identify any measurement taken from a worn surface |
| Roller length | The roller face length and the overall shaft length, marked separately |
| Shaft ends | End shape, dimensions, retaining features and the positions that sit in the supports |
| Set arrangement | Roller count, trough angle where applicable, and each roller’s position |
| Frame mounting | The centres of identified mounting holes; label the holes on a plan view |

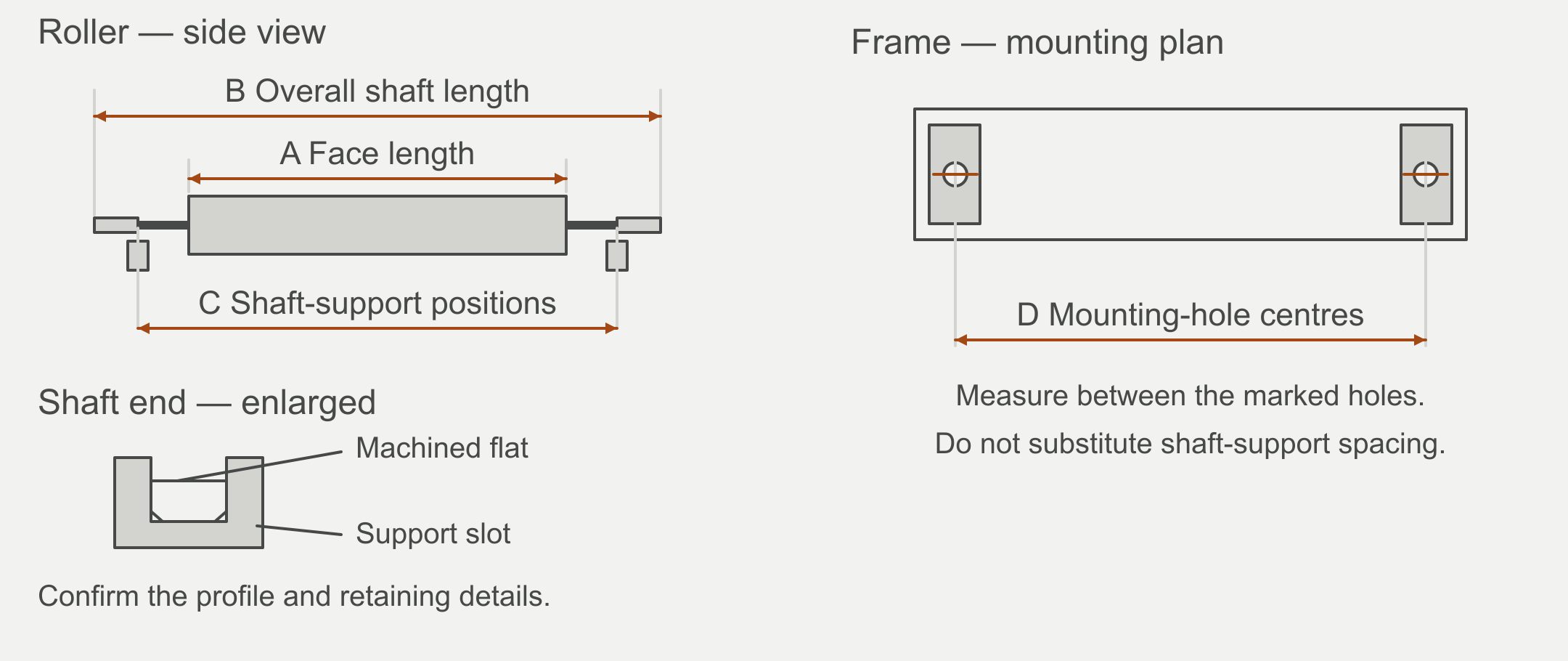

The dimension diagram separates the roller from the frame mounting plan. A runs between the ends of the roller face. B runs between the outer ends of the shaft. C identifies the two shaft-support positions. D runs between the two marked mounting-hole centres on the frame. C and D refer to different features and should not share an unlabelled “centres” dimension.
The enlarged shaft end shows a flat seated in a support slot. Send the end profile and its retaining details from your own drawing; other shaft ends may be round, threaded or differently machined.
Here is how an incomplete enquiry can move forward:
- Received: “Replacement carrying rollers for the existing belt. Keep the frames.”
- Already known: belt width and quantity stated by the buyer; photos show the roller positions and existing frame.
- Still to confirm: face length, shaft overall length, shaft-end profile and support positions. Mark each known value on the sketch and leave the rest labelled “to confirm”.
ROCKVANTA can use those photos and labelled measurements to identify the missing drawing details. A measurement taken from a worn roller stays marked as measured until the replacement dimensions are confirmed. Include the material, belt speed, loading conditions, dust, moisture or washdown where known so the bearing and seal selection can also be reviewed.
Starting with a worn roller
An old roller can help identify a replacement, but a worn surface is not necessarily the original design size. Keep measured values separate from dimensions taken from an approved drawing.
Ask your maintenance team for photos of the installation, the removed roller, both shaft ends and the supports it fits into. Include any readable part number. Use the same labels on the photos and sketch so the supplier can see which feature each measurement describes.
Follow the site’s isolation and safe-access procedures before inspecting or measuring the conveyor. Do not reach into a running conveyor to obtain a dimension.
If a detail cannot be measured reliably, leave it as an open point. Send the drawing revision if available, or ask whether a sample is needed to confirm the replacement before production.
Seals and tests: what to ask for
Tell the supplier about dust, moisture and cleaning conditions when discussing the seals. A seal description and a test name leave important details open: the method, acceptance limit and record still need to match the order.
ROCKVANTA’s roller and idler product page lists equipment for airtightness, rotational resistance and dynamic-balance testing. That equipment list does not mean every roller receives every test or that a report is included by default.
| Test and purpose | Conditions to confirm | What the record should show |
|---|---|---|
| Airtightness — checks air leakage through the tested assembly under a defined pressure difference | Test method, pressure, duration and acceptance limit | Part identification, actual test conditions, leakage or pressure-change result, and pass/fail against the agreed limit |
| Rotational resistance — measures resistance to turning the roller | Method, speed, load or unloaded condition, temperature and running-in procedure | Measured force or torque with units, conditions and acceptance limit |
| Dynamic balance — checks residual mass imbalance in the rotating assembly | Assembly tested, balancing method, speed and permissible residual unbalance | Part identification, residual unbalance with units and the agreed acceptance criterion |
An airtightness result alone does not establish a dust-ingress rating or seal life in service. Dynamic balance is also a different check from radial runout, which concerns geometric deviation as the shell turns. Ask for the check relevant to the problem you are trying to avoid.
For rotational resistance, bearings, seals and lubricant all contribute to drag. Load, temperature and speed affect the result, so compare readings taken under matched conditions. These relationships are discussed in a research paper on conveyor-idler friction losses.
Before ordering, agree which tests apply, whether they cover samples or all supplied parts, and which records will accompany delivery. The receiving team then has a stated requirement to check against.
A short enquiry you can adapt
The following is an example, not a customer enquiry:
We need replacement carrying rollers for an existing bulk-material conveyor and plan to keep the frames. The attached photos show the installation, both shaft ends and the frame supports. We have marked the known dimensions and quantities on a sketch; dimensions taken from worn surfaces are labelled. Please confirm what else you need to prepare a replacement drawing, and quote the rollers separately from any frame or mounting parts you recommend replacing.
Add the material, belt speed and working conditions where known. If you are buying complete sets, say so and include the frame information. Missing details can be identified during the review—you do not need a finished technical specification to send the first message.
Send your idler enquiry with the drawings, photos or notes you already have.
